BC-1G Modifications & Changes



General

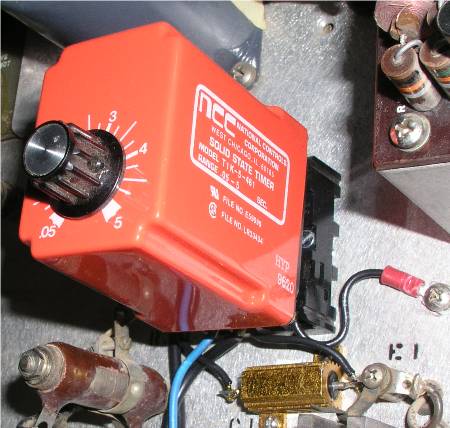

Step-Start  DELAY circuit installed for 833A filament transformer



Step-Start CIRCUIT installed for HV turn on



Power level select changed to allow SINGLE SWITCH selection of 1 KW, 500 Watts, or 250 Watts

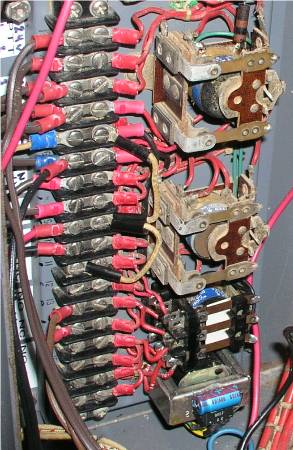

Time Delay relays for LV and HV application changed to SS TD relays - filament TD relay in upper left of photo



Existing remote control board MODIFIED to allow more conventional TX PTT function and RX muting

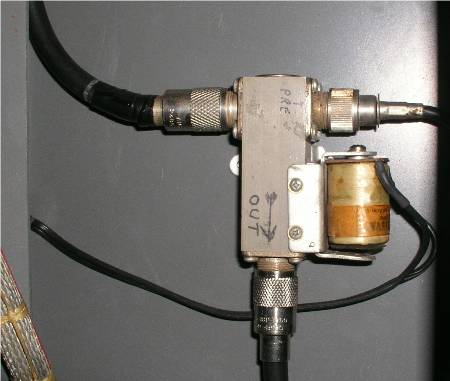

Coaxial antenna RELAY installed





Frequency Conversion



Oscillator/buffer assembly modified for use with external VFO



2nd Oscillator unit acquired with one being retuned for 160 and the other MODIFIED for use on 75



Driver coil RE-TAPPED for 160 and 75 meters and driver band-switch installed

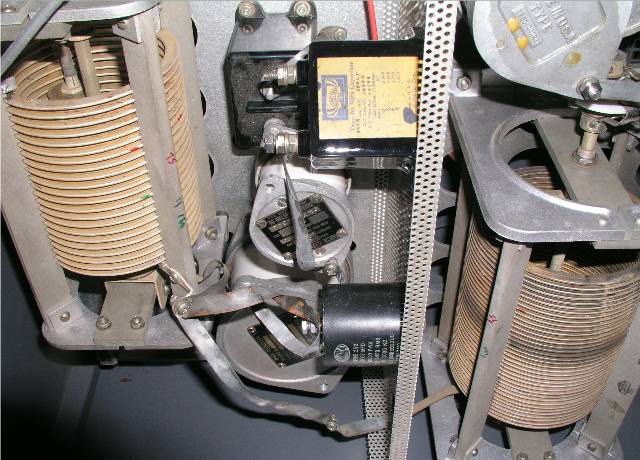

FINAL AMPLIFIER changed to conventional Pi output

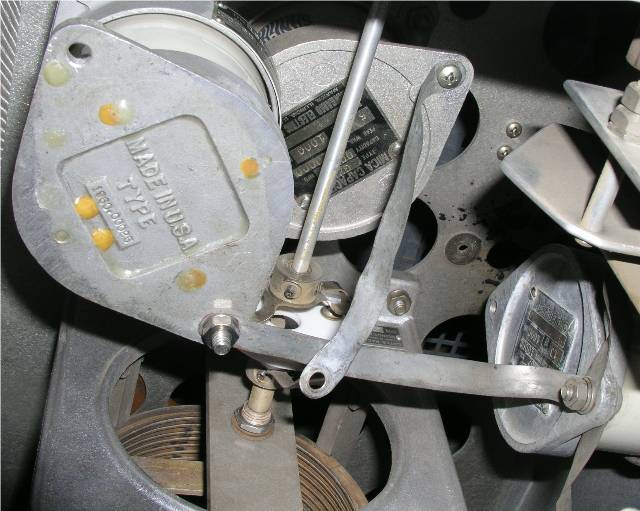

Fixed mica capacitors in PLATE tuning and LOADING reconfigured/added/replaced to allow strapping changes to reduce capacity by 1/2 for 160 meter operation and to reduce it by 1/2 again for 75 meter ops

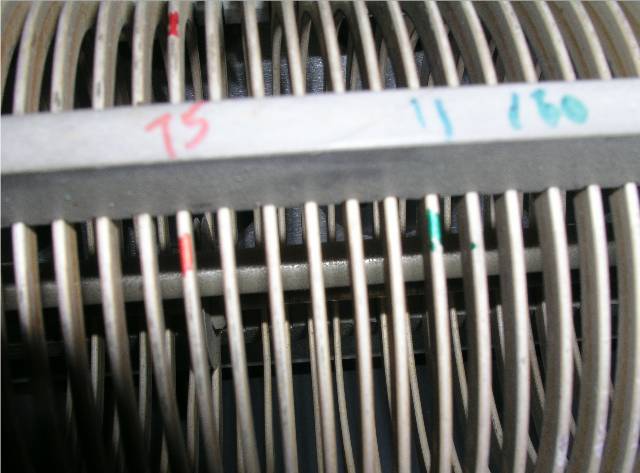

Cheap and simple TURNS COUNTER
